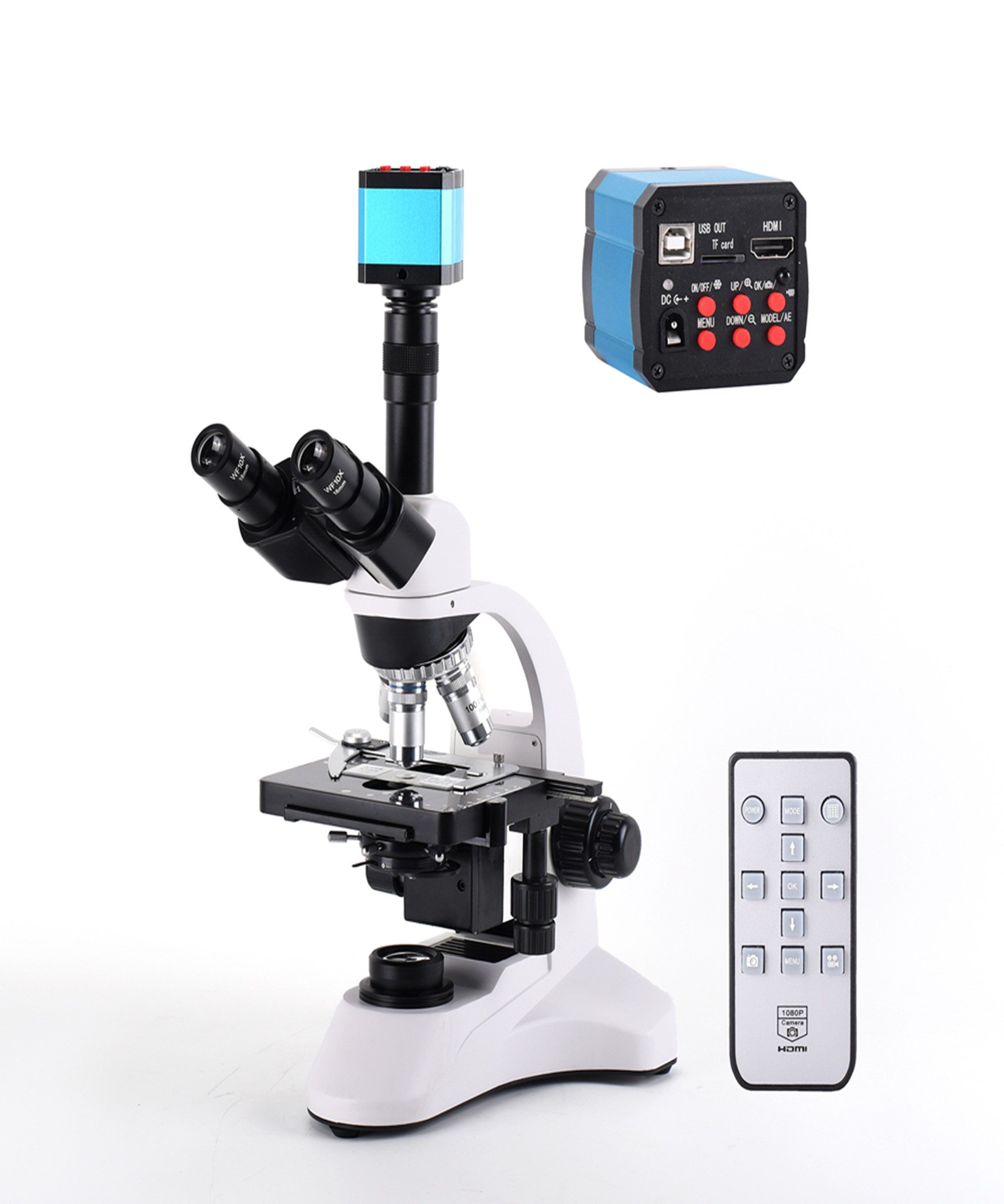

37MP HDMI MICROSCOPE CAMERA
High Quality, High Resolution, Clear Images
Model: Camera with HDMI USB2.0 two output
Image format: JPG
Image resolution: 4608*3456 (for TF Card) 1920 *1080 @ 60FPS(for TF card);1920x1080 (for USB)
Video format: MP4(for TF card)
Video recorder: 1920 *1080 @ 60fps (for TF Card)
USB Video resolution: 1920 *1080 @ 30FPS
Image sensor: 16 megapixel Panasonic sensor 1/2.3 inch
Effective pixel: 16 megapixel
Pixel size: 1.43*1.43um
Frame rate: 60fps
Definition: FULL HD
White balance: Auto/manual
Digital magnification: 5 times digital zoom
Brightness control: Auto/manual
Color: R/G/B adjustable
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Film and record: Support
Cross cursor: Support multi-color, size adjustable
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable
SNR: Support
TF card interface: Max 64G
HDMI interface: Standard HDMI output (Type A)
Lens: C
USB interface : Standard USB 2.0 interface (Type B)
Package Content:
1 x Microscope Camera
1 x Power Supply
1 x Software DISC
Specifications:
Digital Trinocular Microscope
Model No.LBM-D13
Optical System
Finite Optical System
Viewing Head
Trinocular viewing head,45⁰ inclined,360⁰ rotation interpupillary distance 48 to 75mm
Magnification
40x to 1600x
Objectives
4X,10X,40X,100X (Spring oil)
Eyepice
Wide field WF10X /18mm
NOsepiece
Coaxial coarse &fine focusing knob,coarse focusing range 20mm,fine focusing graduation0.002mm
Stage
Double layer mechanical stage size:130x140mm,range:76x52
Condenser
Abbe condenser N.A.1.25, with iris diaphragm,and heifht adjustment knob
Illumination
LED ,Illumination, brightness adjustable
Voltage
220V.50Hz
Weight
8kg
