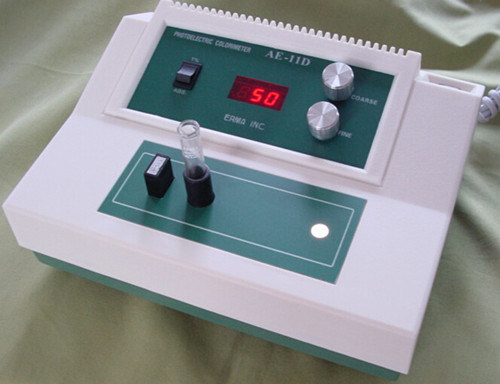

Photoelectric ColorimeterModel No. AE-11D
Characteristic:
New AE-11M & AE-11D are designed for simple operation with durable function and permit speedy accurate measurement in routine analysis. The optical system consists of the lamp, Hear-absorption filter, Lens, and Diaphragm. The light traversing in this system falls on the current generating photo-cell which actuates a direct reading microammeter(of AE-11M)or LED display(of AE-11D).
Spec:
High Stability & Reproducibility:Wavelength reproducibility +/- 5nm
Economy:Consumes only 1.5ml of reagent
Dconomy:Sillcon photo-cell
Filter:405,492,546,578,660nm; or 420,470,530,620,660(glass)
Wavelength Range:420-660nm
Photoelectric RangeTrafismittancy T% 1-100% in 100div, Absorption-log T 0-2.0
Photoelectric Accuracy:±2T
Light Source:6V 0.5A tungsten lamp
Indicator:AE-11M 250µA Micro-ammeter, AE-11D three-digit display
Power Supply:110V or 220V AC 10W
Dimenslon:280*220*122mm, 360*360*200
